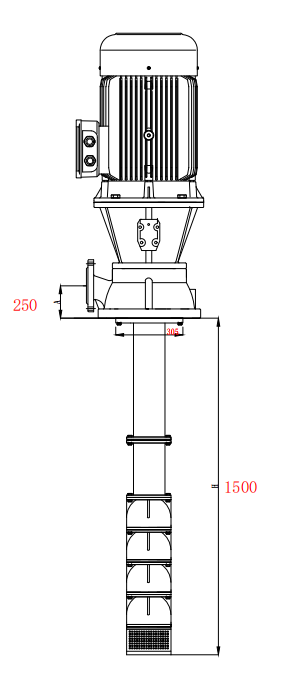

Pump Section：Optimized Floating Platform Design

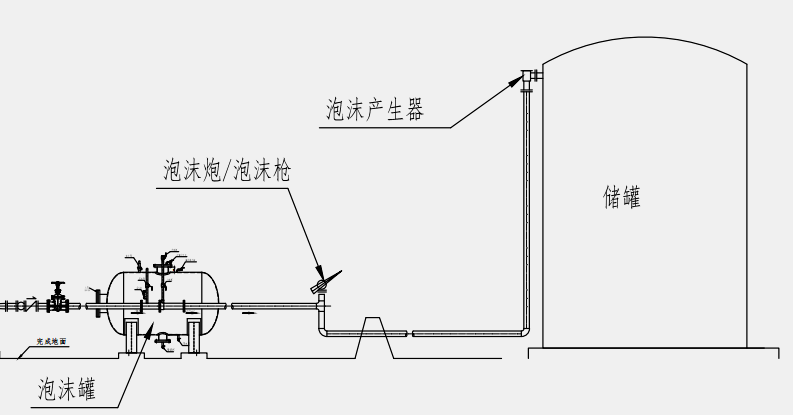

Foam Section:Horizontal Foam Tank Layout

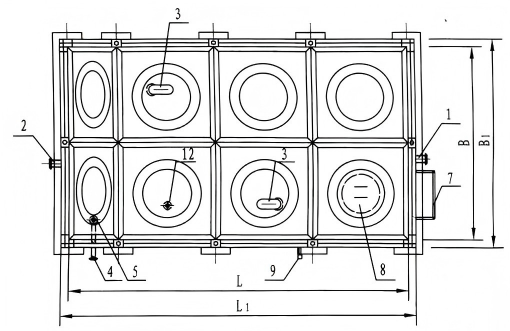

Tank Section:Modular Assembly Structure

Customized Fire Safety for Heavy Industry in Africa

Bridging the gap between strict safety codes and local site conditions—delivering compliant, cost-saving solutions in a resource-limited environment.

Region
Africa Region
Facility Type
Heavy Oil Plant
Scale
Area: 2,560 sqm
Standards
CN Standards (GB) Adapted for Overseas
Scope
Water Supply, Foam System, Prefab Tank
Result
Core System Cost Reduced by 20%

The Challenge

Constructing High-Risk Facilities without Local Codes. The project involved a high-risk Class A industrial facility located in Africa. A major challenge was the absence of comprehensive local fire safety regulations for such complex infrastructure. The client lacked specialized fire engineering support and faced a “knowledge gap” regarding standards, installation feasibility, and material selection. They urgently needed a turnkey solution that could guarantee compliance while adapting to the logistical and technical realities of the African construction market.

Our Solution

Standard Adaptation & Precision Engineering. Omnifir acted as the technical bridge. We adopted authoritative Chinese standards (GB 50974, GB 55037, GB 50084) as the design baseline and adapted them to local conditions. Our approach focused on “One-Chain” Systemization—integrating water supply, foam suppression, and pump rooms into a cohesive design. We didn’t just supply equipment; we optimized the hydraulic parameters to balance safety with economic feasibility.

Engineering Highlights

  • Pump Optimization
  • Foam System Re-engineering
  • Design for Constructability

Global Delivery Guarantee

We deliver from Blueprint to Jobsite.

  • Source Quality:Control:Rigorous selection of international standard (CE/UL compatible) materials to withstand long-haul logistics and harsh African climates.

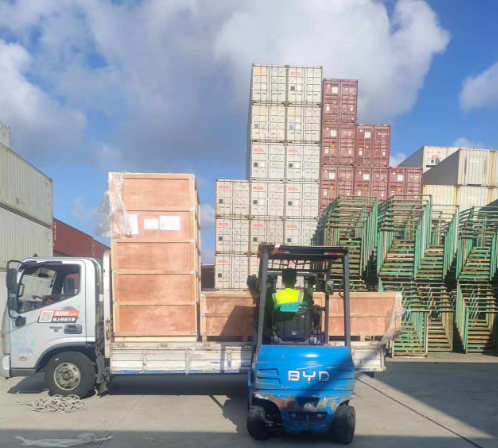

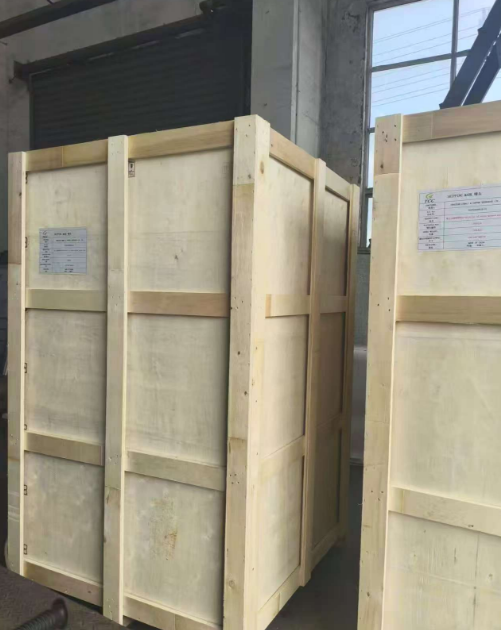

  • Export Packaging:Professional reinforcement and shock-proof packaging. Mandatory fumigation for all wooden components to ensure smooth customs clearance.
  • Lifetime Support:From logistics tracking to 7x24h technical response by the original project engineers. We ensure zero delays in resolving site issues.
