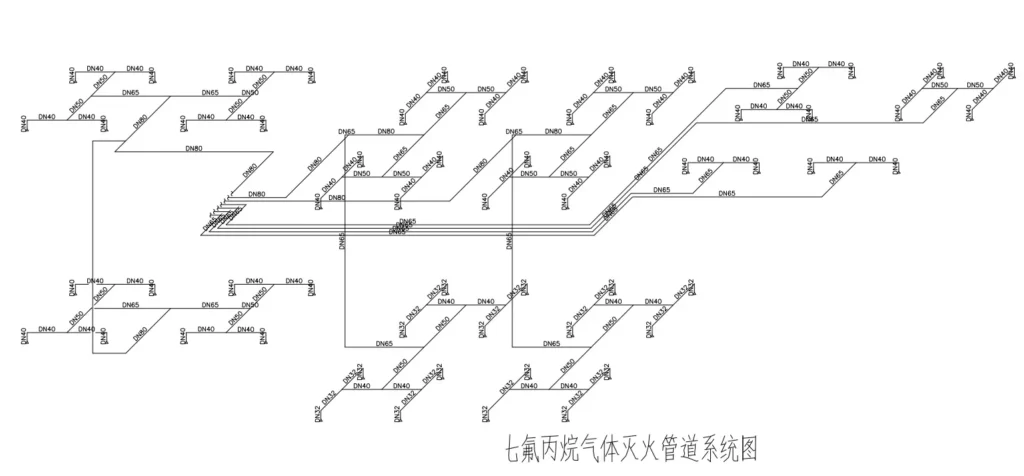

Heptafluoropropane (HFC-227ea) Gas Fire Extinguishing Piping System Diagram

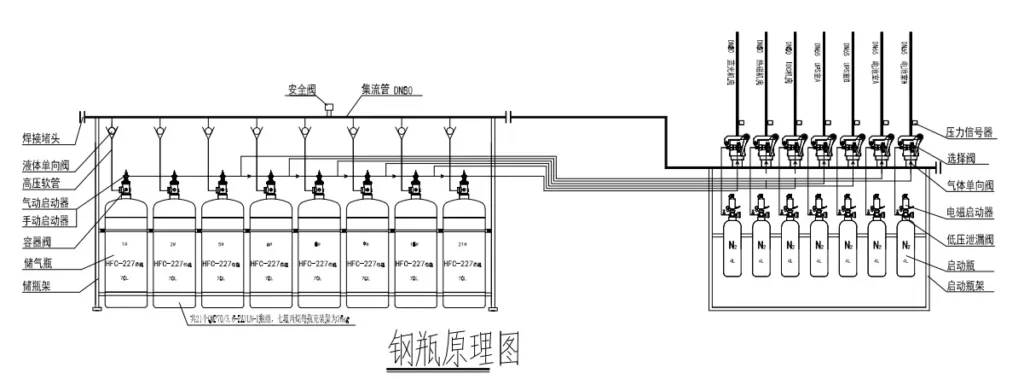

Gas Cylinder Schematic Diagram

Real-scene Image of Data Center Server Room

3d-Illustration-of-system-installation

3D Illustration of System Installation

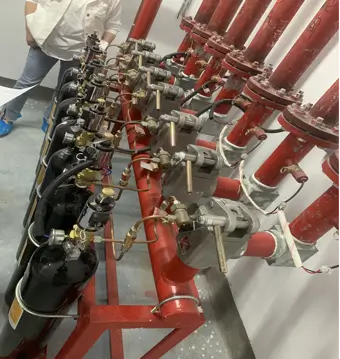

Detail of Drive Device and Selector Valves

Real-scene Image of Gas Cylinder Storage Room

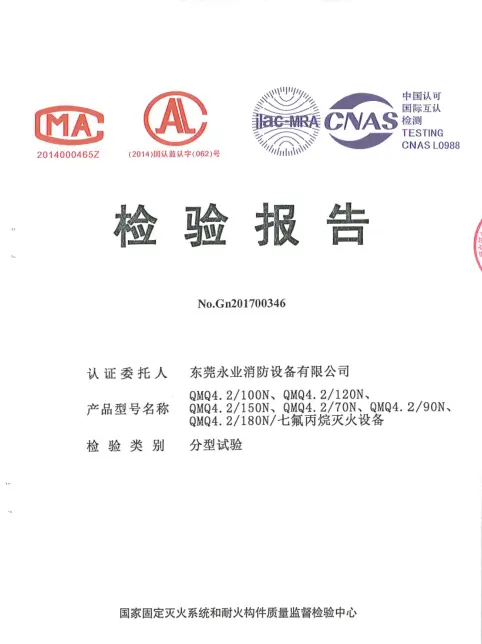

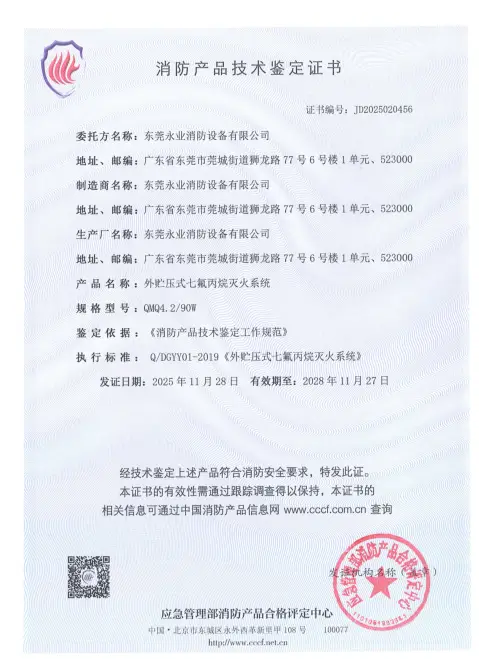

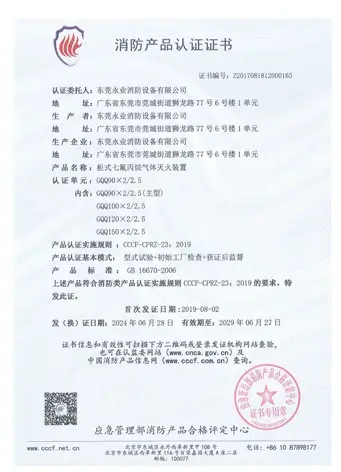

Certification And Test Report

Fire Suppression System for Smart Control Data Center

Project Name
Smart Control Data Center HFC-227ea Project
Facility Type
Data Center Fire Safety
Project Scale
Total area 11,314.88 m², 4 floors
Building Height
18.3m
Fire Resistance
Grade II
Key Systems
HFC-227ea, Alarm, Water Supply, Sprinkler, Smoke Control
Result
Core System Cost Reduced by 20%

Project Challenges

  • High Equipment Sensitivity:The facility houses expensive precision servers and storage media with “zero tolerance” for corrosive or conductive fire extinguishing agents.

  •  Business Continuity Demands: Real-time data transactions mean any downtime for post-fire cleanup or secondary damage results in massive financial losses.

  • Complex Physical Environment: Including raised floors, closed cabinets, and ceiling voids, making it difficult for traditional methods to achieve full coverage.

Our Solution

  • Total Flooding Protection: Leveraging HFC-227ea’s ability to interrupt the combustion chain reaction physically and chemically to create a 3D protection network.

  • Deep Optimization for Data Centers: Strictly following data center design codes to support business recovery within minutes and meet regulatory compliance.

  • Refined Pipeline Design: Specialized layouts for underfloor areas and cabinet interiors to ensure uniform extinguishing agent concentration.

Engineering Highlights

  • Rapid & Efficient Suppression: The entire response sequence—from fire detection and alarm triggering to agent discharge—is completed within dozens of seconds, achieving second-level fire control.
  • Clean & Eco-friendly: The system utilizes a clean agent with zero Ozone Depletion Potential (ODP). It is non-conductive, residue-free, and non-corrosive, ensuring zero secondary damage to precision electronic equipment and storage media.
  • 360° Comprehensive Coverage: Through the strategic and scientific placement of discharge nozzles, the system provides full-dimensional protection across all areas, including concealed spaces above suspended ceilings and beneath raised floors.
  • High-Standard Quality Assurance: The construction process strictly adheres to industry specifications, and all supporting products are backed by authoritative certifications to ensure the long-term reliability of operations.

Global Delivery Guarantee

We deliver from Blueprint to Jobsite.

  • Source Quality:Control:Rigorous selection of international standard (CE/UL compatible) materials to withstand long-haul logistics and harsh African climates.
  • Export Packaging:Professional reinforcement and shock-proof packaging. Mandatory fumigation for all wooden components to ensure smooth customs clearance.
  • Lifetime Support:From logistics tracking to 7x24h technical response by the original project engineers. We ensure zero delays in resolving site issues.
