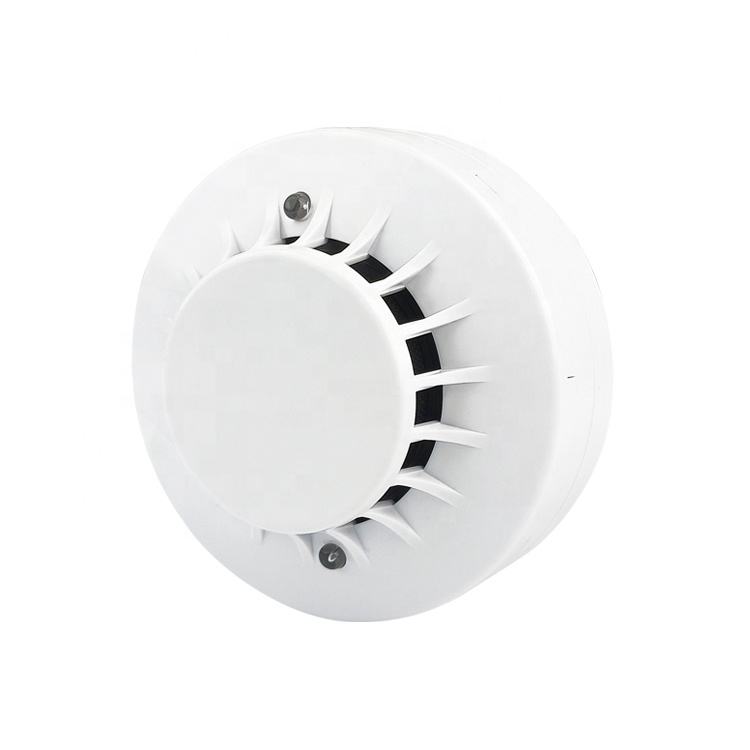

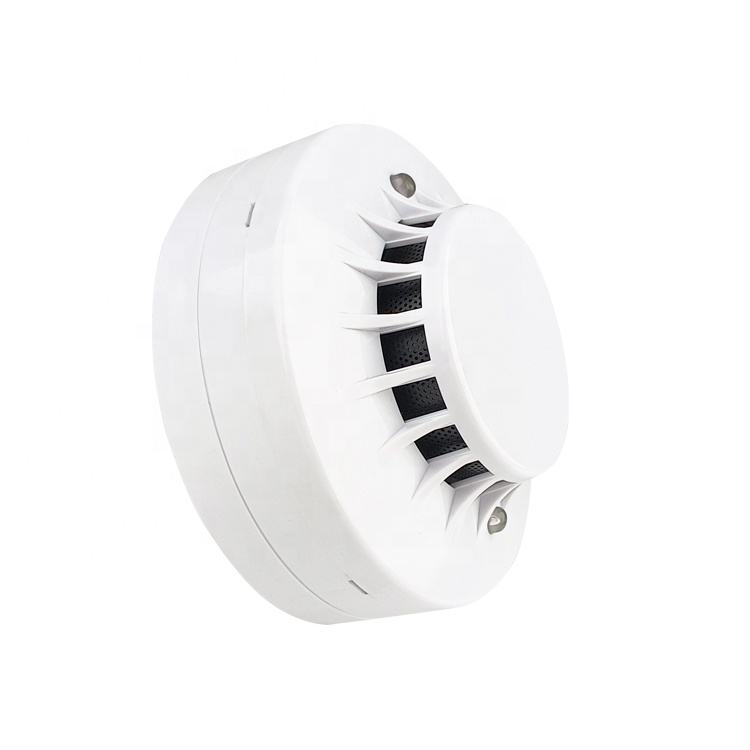

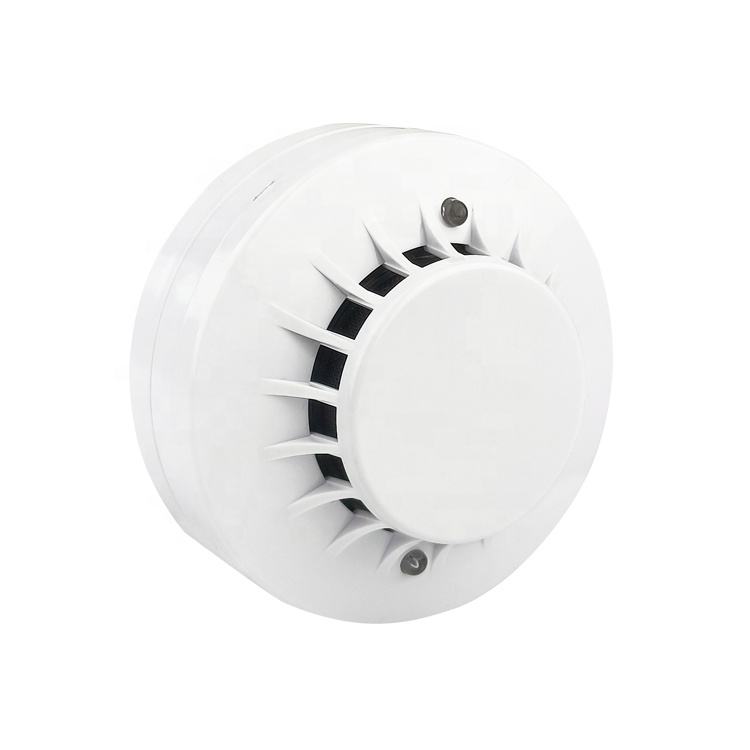

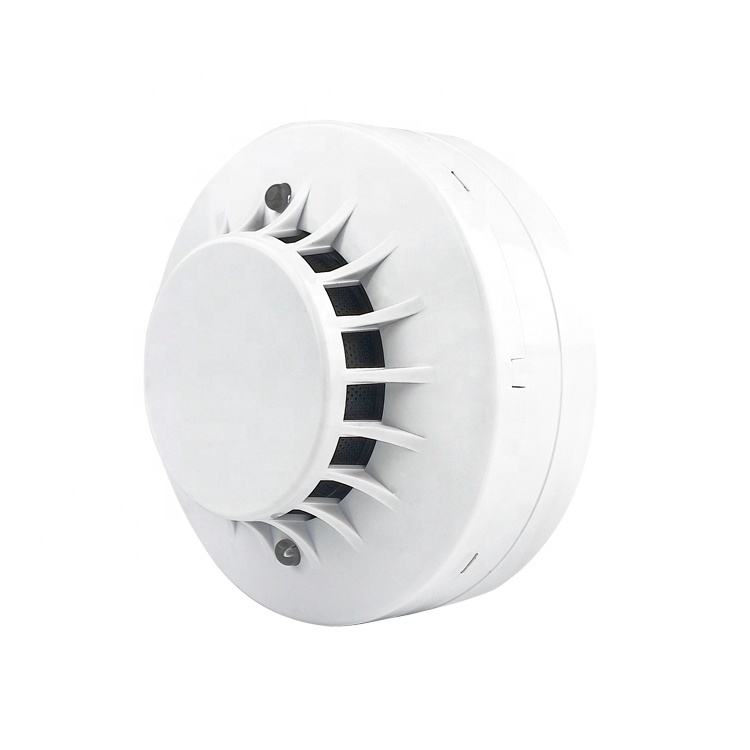

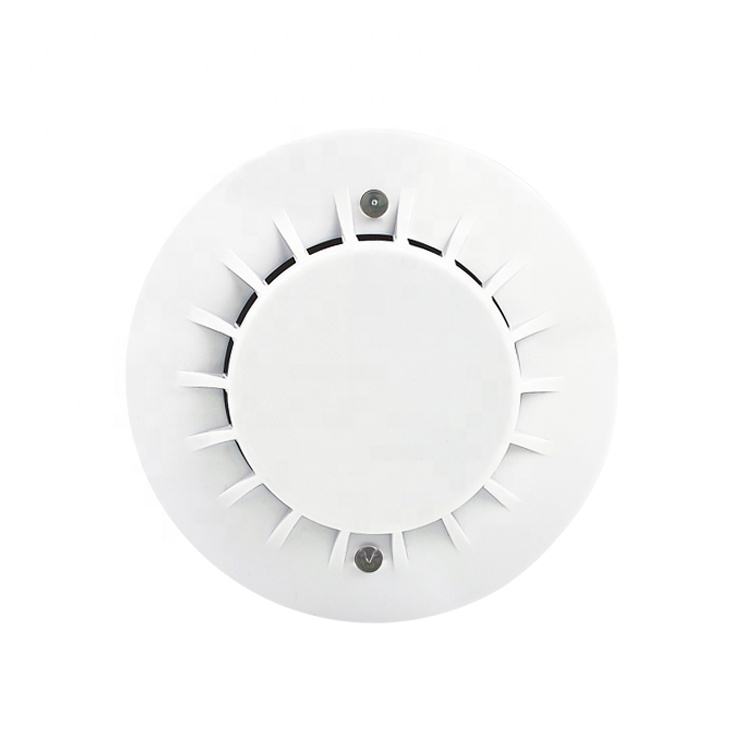

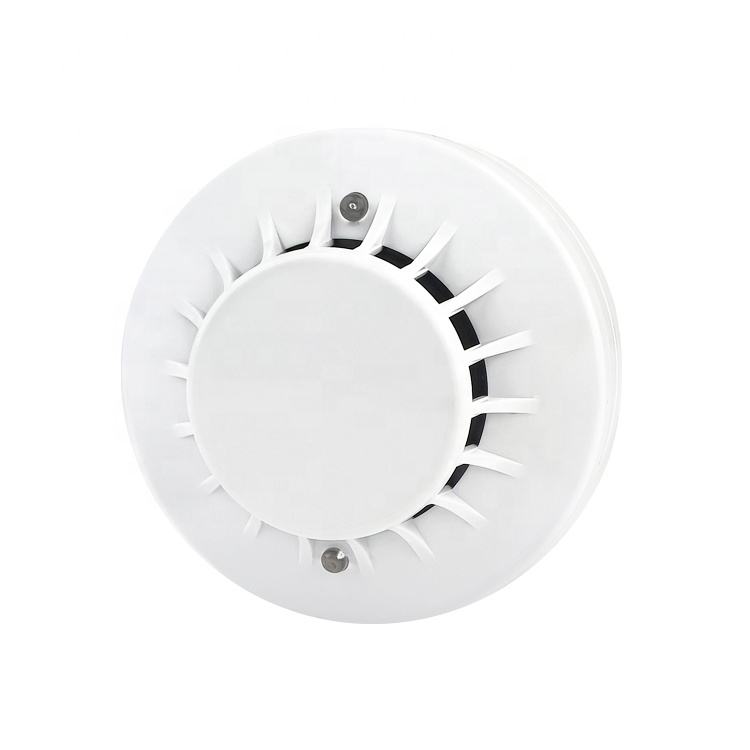

Conventional Fire Alarm System Smoke Detector-Photoelectric Sensor EN54-7 Certified CE Marked for Enhanced
Description
| Important attributes | |||
| alarm sound | 85 dB | Special Features | smoke detector |
| Certificate | CE | Brand Name | Omnifir |
| Place of Origin | Jiangxi,China | Material | ABS Plastic |
| Sensor Type | Photoelectric | Operating voltage | DC:9V~35V(Support: DC40~60V) |
| Standby current:2 WIRE |
≤50uA | Alarm current:2 WIRE |
2 WIRE:20~25 mA @12V; 40~50 mA @24V |
| Alam indication | red LED | Reset | power off or auto reset |
| Alarm output | Remote led for 2 wires | contact rating N/A for |
2 wires |
| Sensitivity | 0.08-0.16db/m | Standard | EN54-7:2008 |
| Packaging and delivery | |||
| Sellng Units | Singleitem | Single package size |
46X47X58cm |
| Single gross weight |
0.500 kg | ||
| Specification | |||
| item | value | ||
| Place of Origin | China | ||
| Jiangxi | |||
| Brand Name | Omnifir | ||
| Operating voltage | DC:9V~35V(Support:DC40~60V) | ||
| Standby current:2WIRE | ≤50uA | ||
| Alarm current:2 WIRE | 2 WIRE:20~25 mA @12V;40~50 mA @24V | ||
| Alarm indication | red LED | ||
| Reset | power off or auto reset | ||
| Alarm output | Remote led for 2 wires | ||
| contact rating N/A for | 2wires | ||
| Sensitivity | 0.08-0.16db/m | ||
| Standard | EN54-7:2008 | ||
| Certificate | CE | ||
